Ameba Arduino: [RTL8722CSM] [RTL8722DM] Approximate UDP Receive Delay

Materials
  • Ameba x 1
  • Windows computer connected to same network
Example

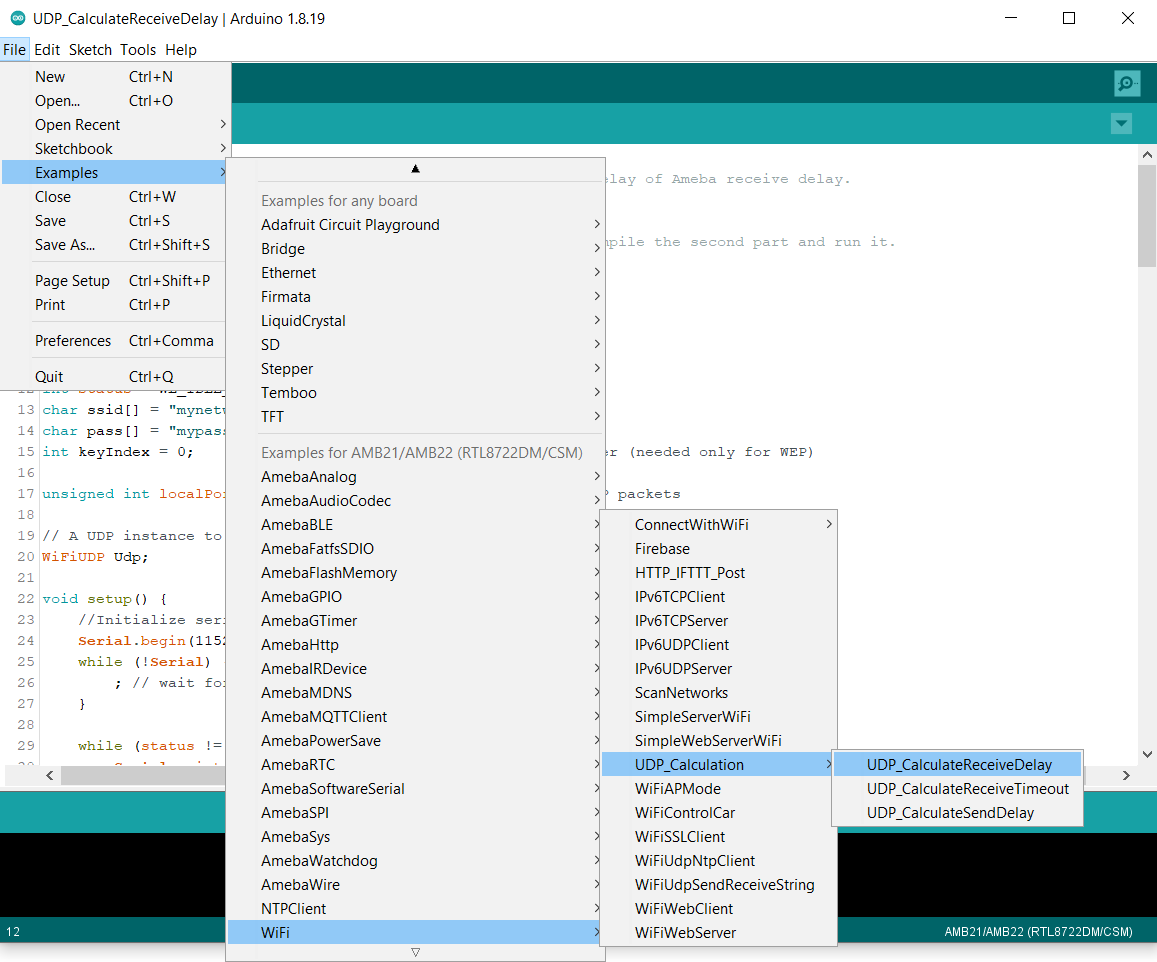

This example uses Ameba to receive UDP packets from a computer and calculates the UDP receive delay. Ameba Preparation Open the “CalculateUdpReceiveDelay” example in “File” -> “Examples” -> “AmebaWiFi” -> “UDP_Calculation” -> “CalculateUdpReceiveDelay”. 1 In the sample code, modify the highlighted section to enter the information required (ssid, password, key index) to connect to your WiFi network. 1 Upload the code and press the reset button on Ameba once the upload is finished. Open the serial monitor in Arduino IDE and take note of the IP address assigned to Ameba. 1 Computer Preparation On the computer, Cygwin will be required to compile the code to send the UDP packets. Cygwin can be downloaded from https://www.cygwin.com/ Follow the instructions there to install it. Next, from the “CalculateUdpReceiveDelay” Arduino example, copy the code from the bottom between “#if 0” and “#endif”, into a new text file, change the hostname to the IP address assigned to Ameba, and rename the file to “UdpReceiveDelay.cpp”. 1 Next, open a Cygwin terminal, change the working directory to the location of “UdpReceiveDelay.cpp”, and use the command “g++ UdpReceiveDelay.cpp -o UdpDelay” to compile the code. A file named “UdpDelay.exe” will be created in the same directory. Running the Example Reset the Ameba, wait for the WiFi to connect, and check that the IP address remains the same. On the computer, run the UdpDelay.exe file, and the computer will begin to send packets to Ameba. Once 10000 packets have been received, Ameba will calculate the average delay and print out the result to the serial monitor. It may take up to a few minutes for 10000 packets to be sent. 1
