Standard SDK Develop once and apply to all

Standard SDK
Develop once and apply to all

Designed by Realtek

Designed by Partners

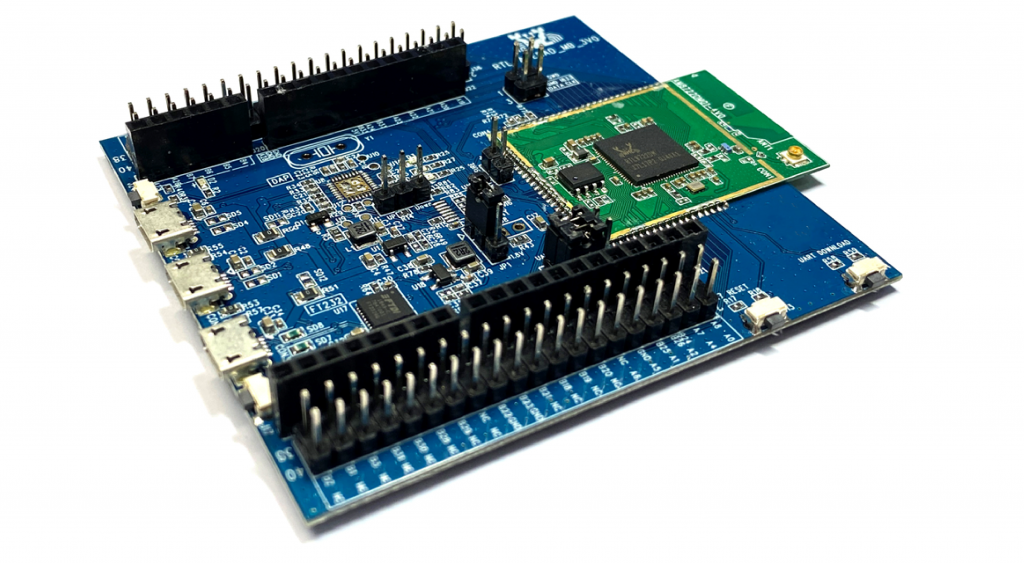

Ameba RTL8722DM Board (AMB 21)

CPU

32-bit Arm®Cortex®-M4, up to 200MHz
32-bit Arm®Cortex®-M0, up to 20MHz

Memory

512KB SRAM + 4MB PSRAM

Key Features

Integrated 802.11a/n Wi-Fi SoC
Trustzone-M Security
Hardware SSL Engine
Root Trust Secure Boot
USB Host/Device
SD Host
BLE5.0
Codec
LCDC
Key Matrix

Other Features

1 PCM interface
4 UART interface
1 I2S Interface
2 I2C interface
7 ADC
17 PWM
Max 54 GPIO

Ameba RTL8722CSM Board (AMB 22)

CPU

32-bit Arm®Cortex®-M4, up to 200MHz
32-bit Arm®Cortex®-M0, up to 20MHz

Memory

512KB SRAM + 4MB PSRAM

Key Features

Integrated 802.11 n Wi-Fi SoC
Trustzone-M Security
Hardware SSL Engine
Root Trust Secure Boot
USB Host/Device
SD Host
BLE5.0
Codec
LCDC
Key Matrix

Other Features

1 PCM interface
4 UART interface
1 I2S Interface
2 I2C interface
7 ADC
17 PWM
Max 54 GPIO

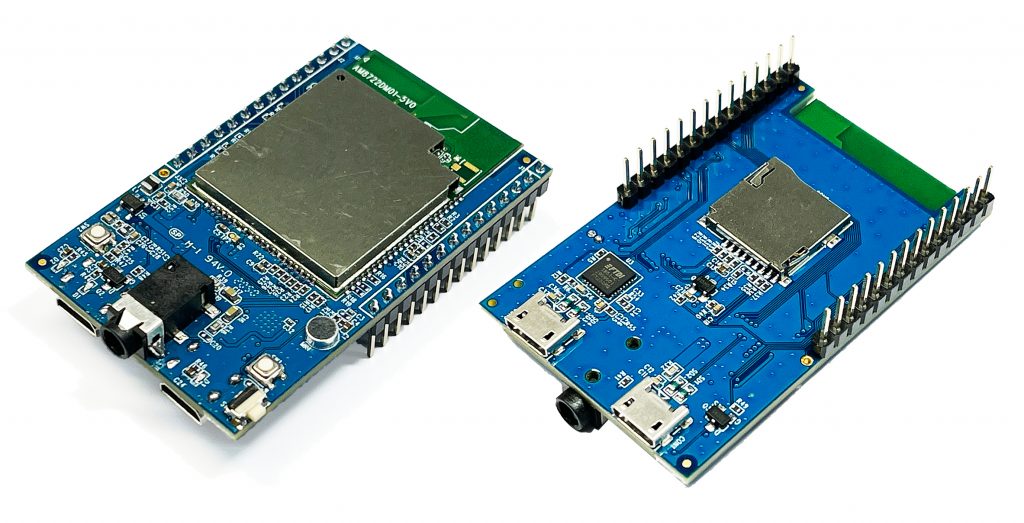

Ameba RTL8722DM mini Board (AMB 23)

CPU

32-bit Arm®Cortex®-M4, up to 200MHz
32-bit Arm®Cortex®-M0, up to 20MHz

Memory

512KB SRAM + 4MB PSRAM

Key Features

Integrated 802.11a/n Wi-Fi SoC
Trustzone-M Security
Hardware SSL Engine
Root Trust Secure Boot
USB Host/Device
SD Host
BLE5.0
Codec
LCDC
Key Matrix

Other Features

1 PCM interface
3 UART interface
1 I2C interface
7 ADC
1 SPI
9 PWM
Max 23 GPIO
1 Switch button
2 LED

Ameba RTL8722DM mini Board (AMB 23)

  Partner Designed

CPU

32-bit Arm®Cortex®-M4, up to 200MHz
32-bit Arm®Cortex®-M0, up to 20MHz

Memory

512KB SRAM + 4MB PSRAM

Key Features

Integrated 802.11a/n Wi-Fi SoC
Trustzone-M Security
Hardware SSL Engine
Root Trust Secure Boot
USB Host/Device
SD Host
BLE5.0
Codec
LCDC
Key Matrix

Other Features

1 PCM interface
3 UART interface
1 I2C interface
7 ADC
1 SPI
9 PWM
Max 23 GPIO
1 Switch button
2 LED
