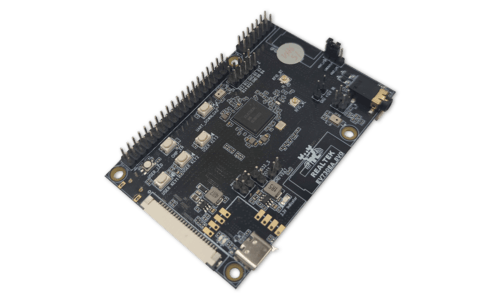

AmebaSmart 開發板
Realtek 瑞昱研發
合作伙伴研發
(by Streamunlimited)

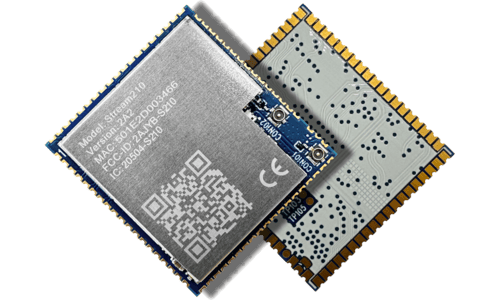

Stream210 (by Streamunlimited)
Partner Designed
MCU
Part Number: RTL8730E
Dual-core Cortex-A32@ 1.3GHz
Embedded KM0 MCU (Arm Cortex-M23 compatible, ultra-low-power)
Memory
2Gb DDR3L, 2Gb Flash
Key Features
Dual-band, Wi-Fi 6 (2.4 GHz and 5 GHz, 20 MHz)
Bluetooth 5.3 with LE Audio
Secure OTA updates (SSH, UART, web client, USB)
Secure Boot, comprehensive driver support
Low power design
Compact form factor: 25.4 mm × 27.5 mm
Modular certifications: FCC, IC, RED, MIC, SRRC
Other Features
OS: Linux with StreamBSP (Yocto-based, customizable BSP)
Interfaces: USB, SDIO, UART, I2C, SPI, SWD
Display: MIPI-DSI, LCDC (up to 1024×768 @ 60Hz)
Audio: AMIC, DMIC, AEC, VAD, Stereo DAC, I2S, headphone output
IOs: Up to 46 GPIOs, LEDC, IR, ADC, PWM, Cap-Touch (9 channels)
Connectivity: WLAN (WPS, SoftAP, Infra), Bluetooth (AVRCP, A2DP, LE Audio)
UI/UX: StreamAPI, WebUI, Remote UI with multilingual support
Updates: USB & Internet upgrade options
Field Use: USB external storage for data logging/config
