AmebaPro2 开发板
Realtek 瑞昱研发
合作伙伴研发
(by ideas Hatch, III)

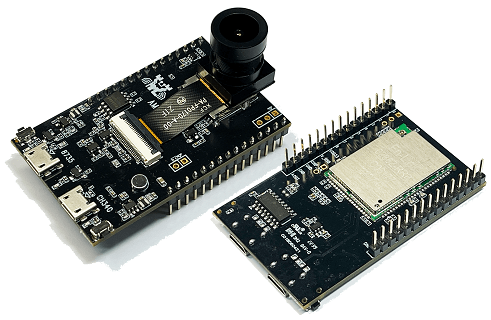

AMB82 MINI
MCU
Part Number: RTL8735B
32-bit Arm v8M, up to 500MHz
Memory
768KB ROM 512KB RAM 16MB Flash Supports MCM embedded DDR2/DDR3L memory up to 128MB
Key Features
Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz
Bluetooth Low Energy (BLE) 5.1
Integrated Intelligent Engine @ 0.4 TOPS
USB Host/Device
SD Host
ISP
Audio Codec
H.264/H.265
Secure Boot
Crypto Engine
Other Features
2 SPI interfaces 1 I2C interface 8 PWM interfaces 3 UART interfaces 3 ADC interfaces 2 GDMA interfaces Max 23 GPIO
RTL8735BDM MODULE
MCU
Part Number: RTL8735B
RTL8735BDM-AA4-CG (RTL8735BDM thereafter) chipset embedded, Real-M500 (TM9) MCU up to 500MHz
Integrated Intelligent Engine 0.384TOPS,384 MAC, INT8/INT16 engine precision
Memory
768KB ROM on chip 512KB RAM on chip 128MB DDR2 Memory on chip Supports external flash interface
Key Features
ISP and Video Encoding
- Support 12bit Bayer pattern input and 8bit YUY2 input from CMOS sensor
- Support MIPI CSI-2 four data lane
- Support 3DNR, 3A, Digital WDR, OSD
- Max 5-megapixel resolution for H.264/H.265 encoding
- Multiple streams real-time H.265/H.264/JPEG encoding
- H265 2M@30fps + H265 1M@30fps
- CBR/VBR rate control
Wi-Fi
- 802.11 a/b/g/n 1x1, 2.4GHz & 5GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz, 5180MHz ~ 5825MHz
- Support 20MHz bandwidth, up to the data rate of MCS7
- Wi-Fi WEP, WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Support low power Tx/Rx for short-range application
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
Bluetooth Low Energy
- Bluetooth Low Energy (BLE) 5.1
- Speed: 125Kbps, 500Kbps, 1Mbps, and 2Mbps
- Support LE secure connections
- Support LE scatternet
- Support 1 Master links/1 Slave link
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
3x UART interface, baud rate up to 4MHz 2 x I2C, two speed modes: standard up to 10Kbps, fast up to 400Kbps 1 x SD Host for SD version 1.0-3.0 up to 2TB, bus frequency up to 100MHz 2 x SPI Master/Slave, speed up to 31.25MHz 1 x USB 2.0 Host HS/FS mode, 1 x USB 2.0 Device HS/FS mode 7 x PWM with configurable duration and duty cycle from 0 ~ 100% 29 x programmable GPIOs 2 x GDMA and each with maximum 6 channels External Antenna via an I-PEX 4 connector Operating input voltage: (3.3 ± 5%)V Operating ambient temperature: -20°C to 85°C
HUB8735 Ultra
MCU
Part Number: RTL8735B
32-bit Arm v8M, up to 500MHz
Memory
768KB ROM 512KB RAM 16MB Flash Supports MCM embedded DDR2/DDR3L memory up to 128MB
Key Features
Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz
Bluetooth Low Energy (BLE) 5.1
Integrated Intelligent Engine @ 0.4 TOPS
USB Host/Device
SD Host
ISP
Audio Codec
H.264/H.265
Secure Boot
Crypto Engine
Other Features
2 SPI interfaces 2 I2C interface 9 PWM interfaces 3 UART interfaces 5 ADC interfaces Max 24 GPIO
AMB82
MCU
Part Number: RTL8735B
32-bit Arm v8M, up to 500MHz
Memory
768KB ROM 512KB RAM Supports MCM embedded DDR2/DDR3L memory up to 128MB External Flash up to 64MB
Key Features
Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz
Bluetooth Low Energy (BLE) 4.2
Integrated Intelligent Engine @ 0.4 TOPS
Ethernet Interface
USB Host/Device
SD Host
ISP
Audio Codec
H.264/H.265
Secure Boot
Crypto Engine
Other Features
2 SPI interfaces 3 I2C interfaces 12 PWM interfaces 4 UART interfaces 8 ADC interfaces 2 GDMA interfaces Max 59 GPIO
