1. Antenna Selection Note

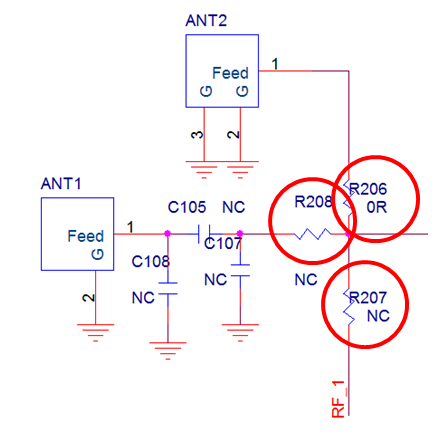

Schematic:

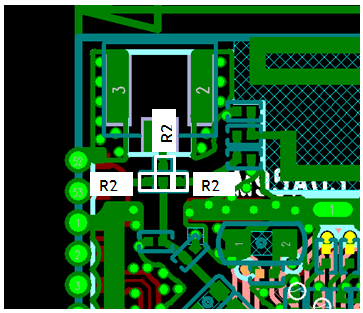

Layout:

2. Problem Statement
- R206 is used for the RF connector but need to be configured to R207 if the external antenna is used.
- Check the resister location and the antenna type.

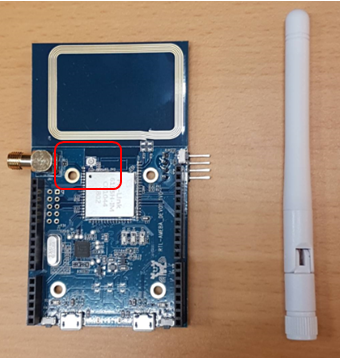

External antenna:

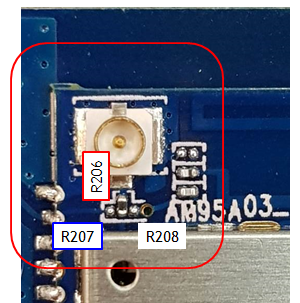

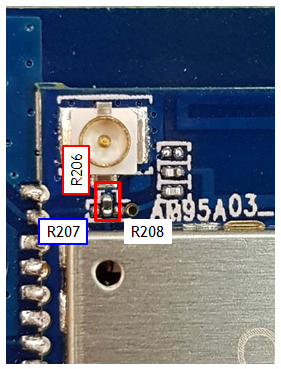

Check the resister location:

3. Solution

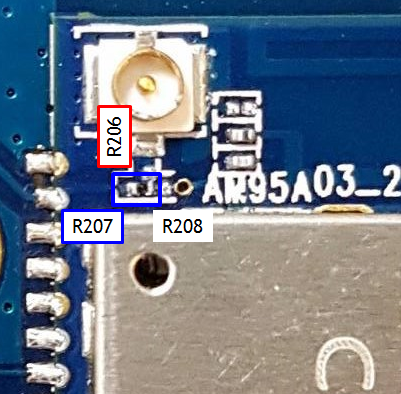

Rework the 0 ohm from R206 to R207 for the external antenna use.
